A 9m long automated cantilever gate for a site entrance, opened by automatic number plate recognition (ANPR) so vehicles can pass through without stopping.
I surveyed the site, designed the gate, posts and foundations in 3D, and produced the drawings for the groundworks and the workshop, then supported the job through manufacture and installation.

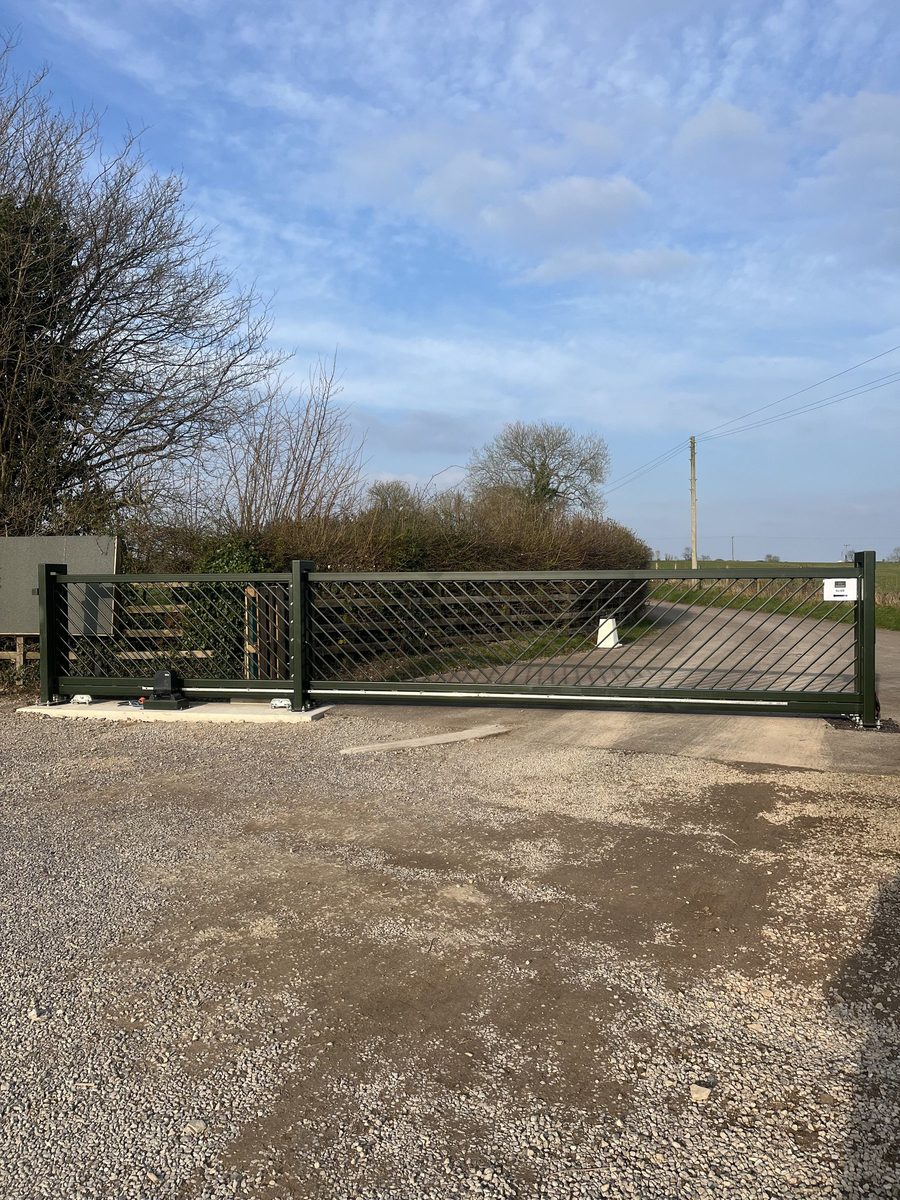

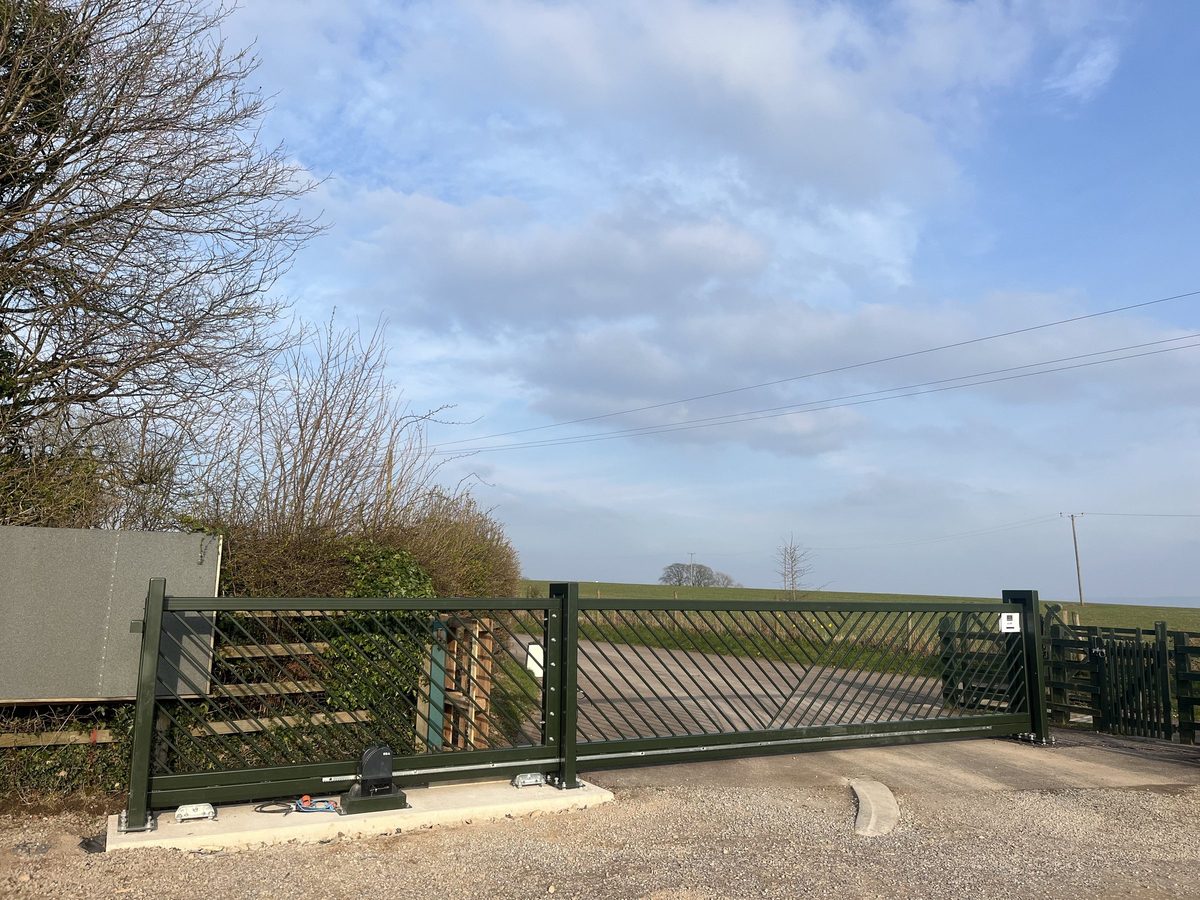

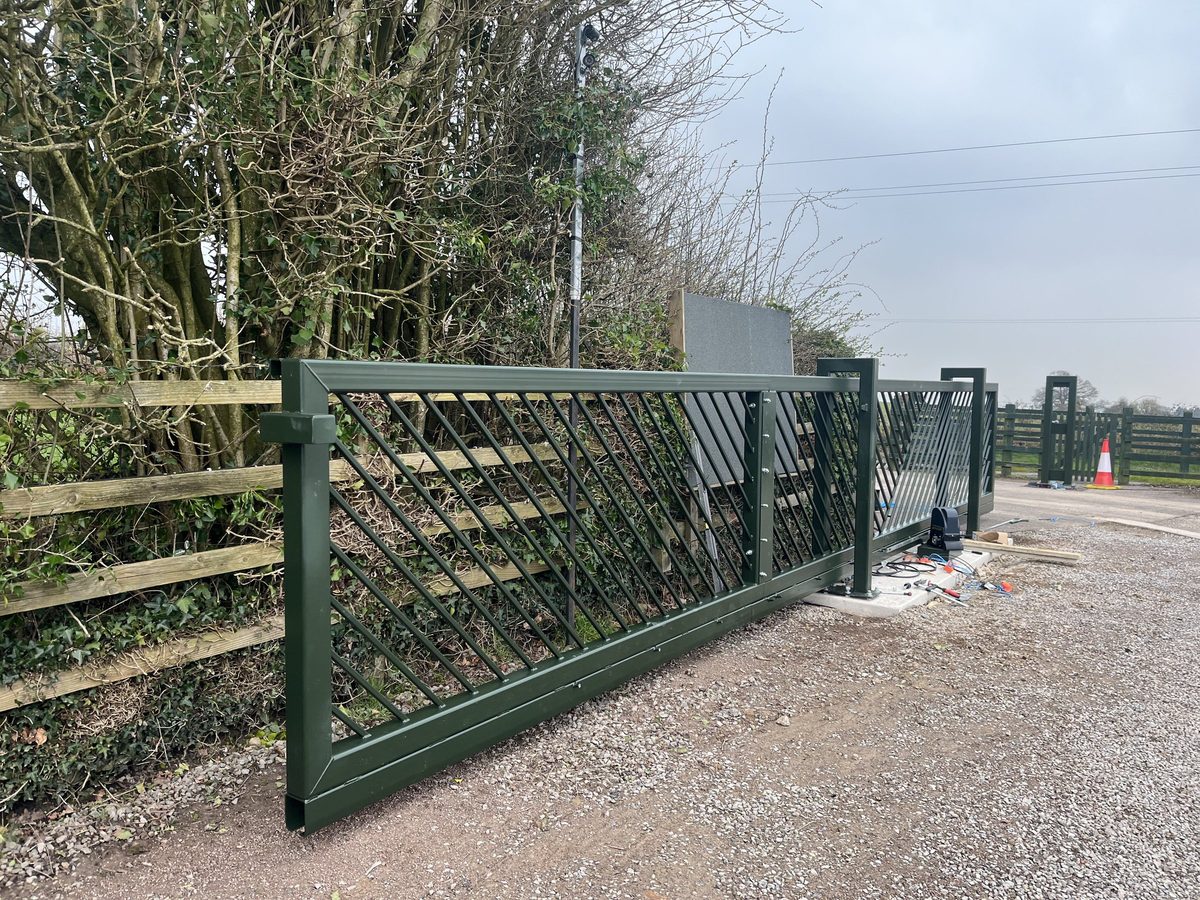

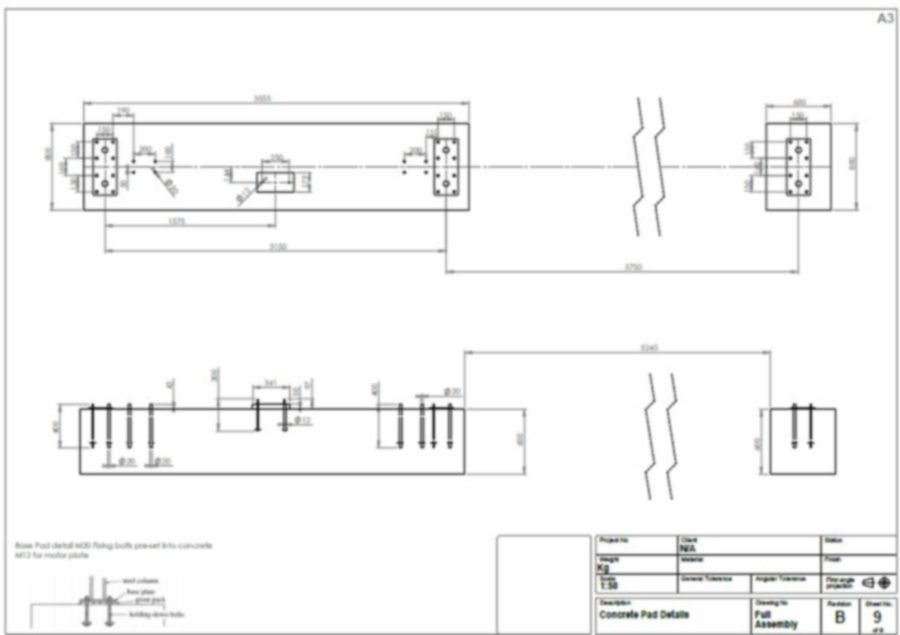

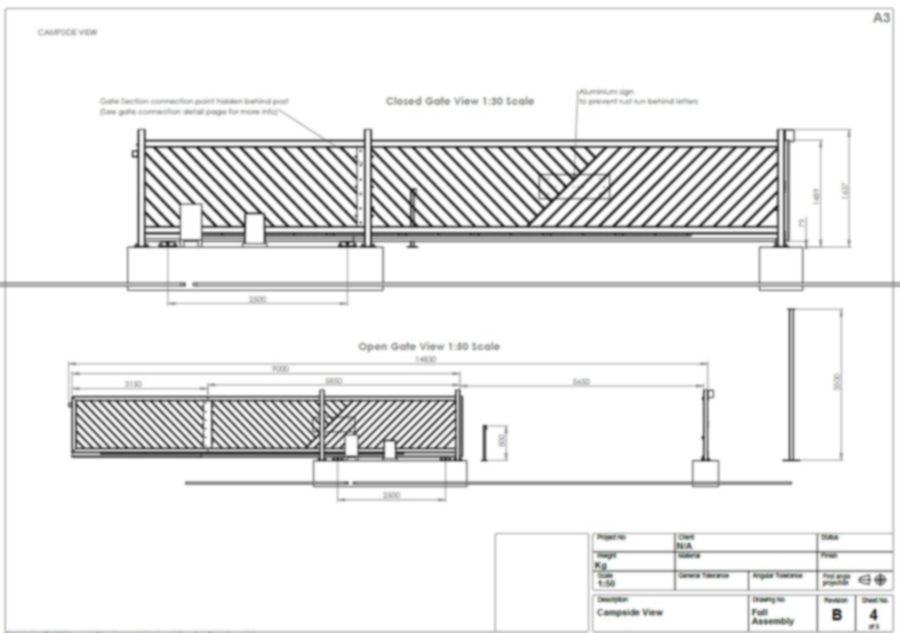

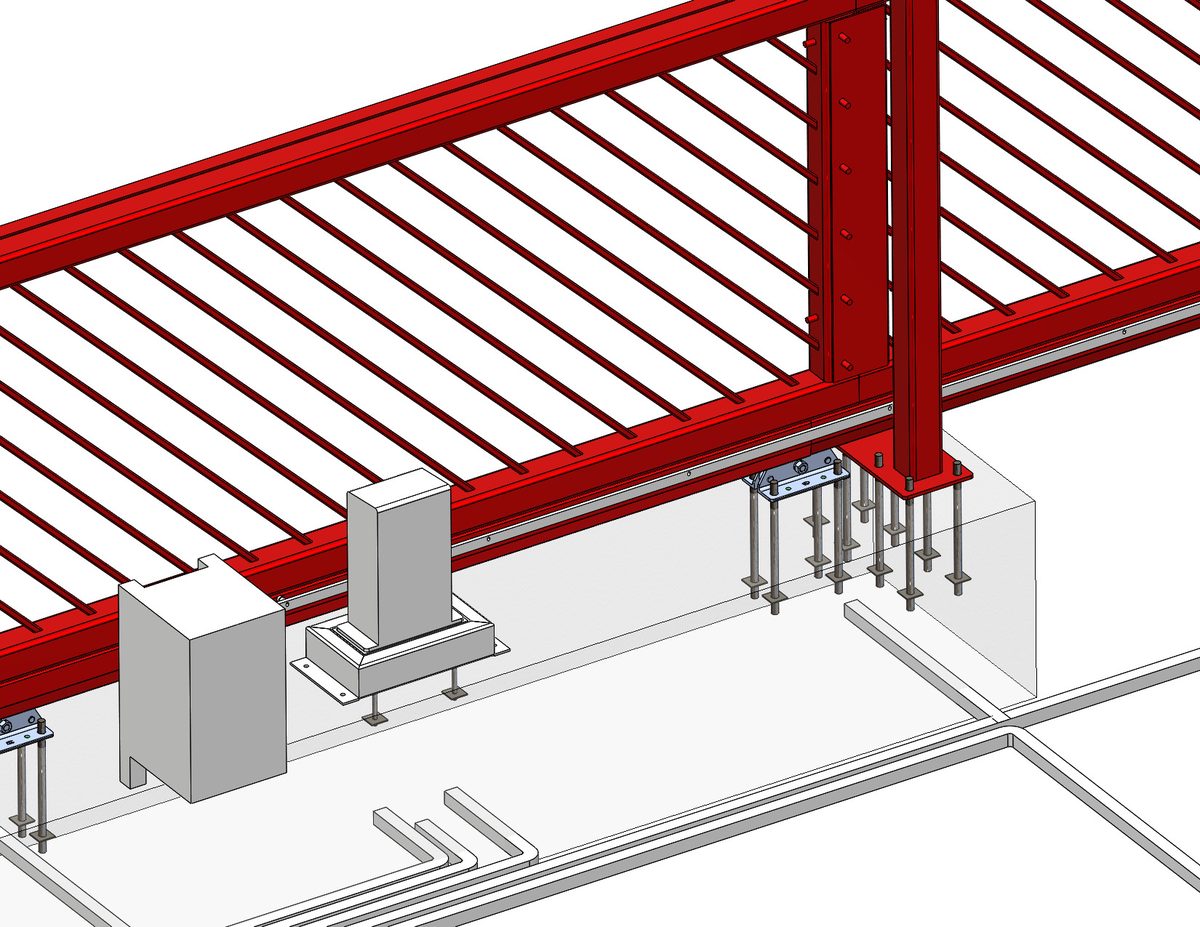

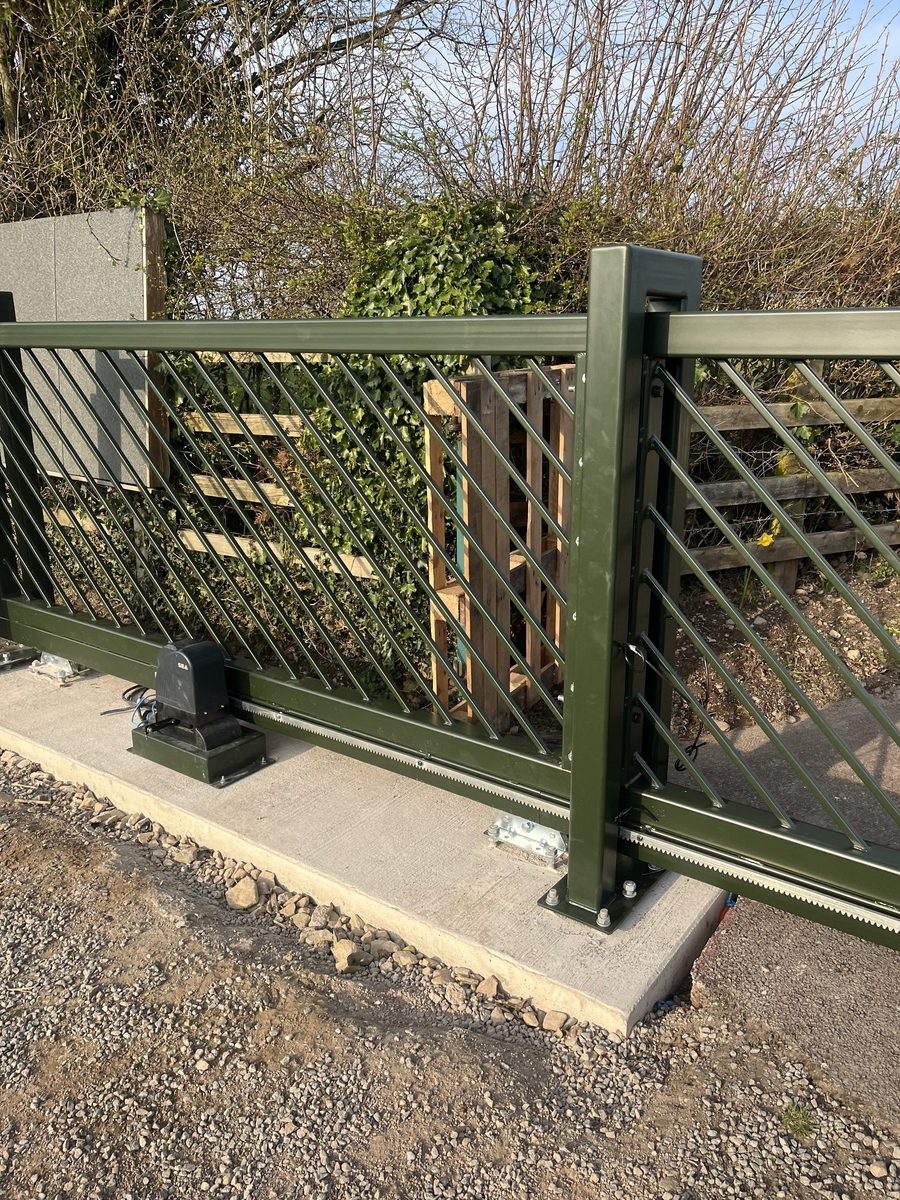

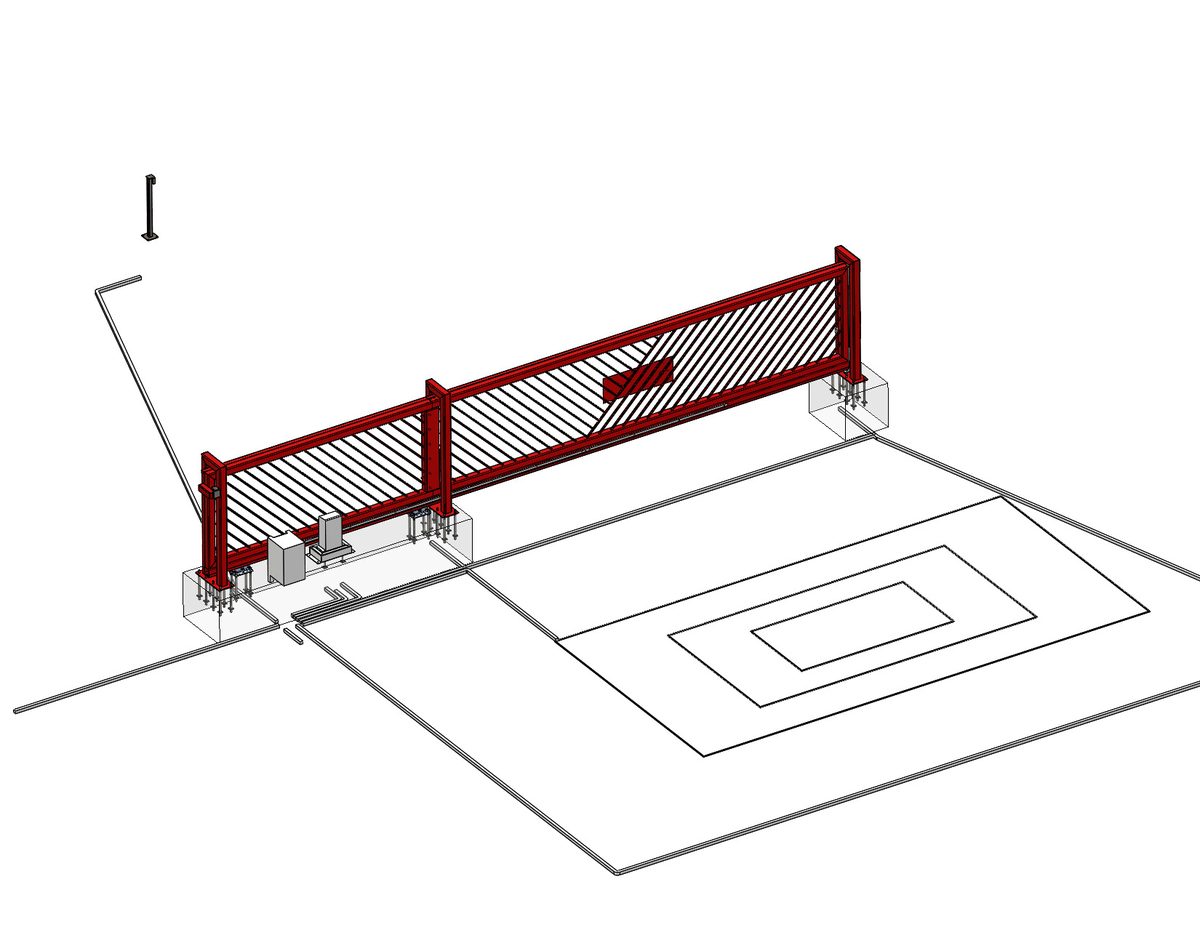

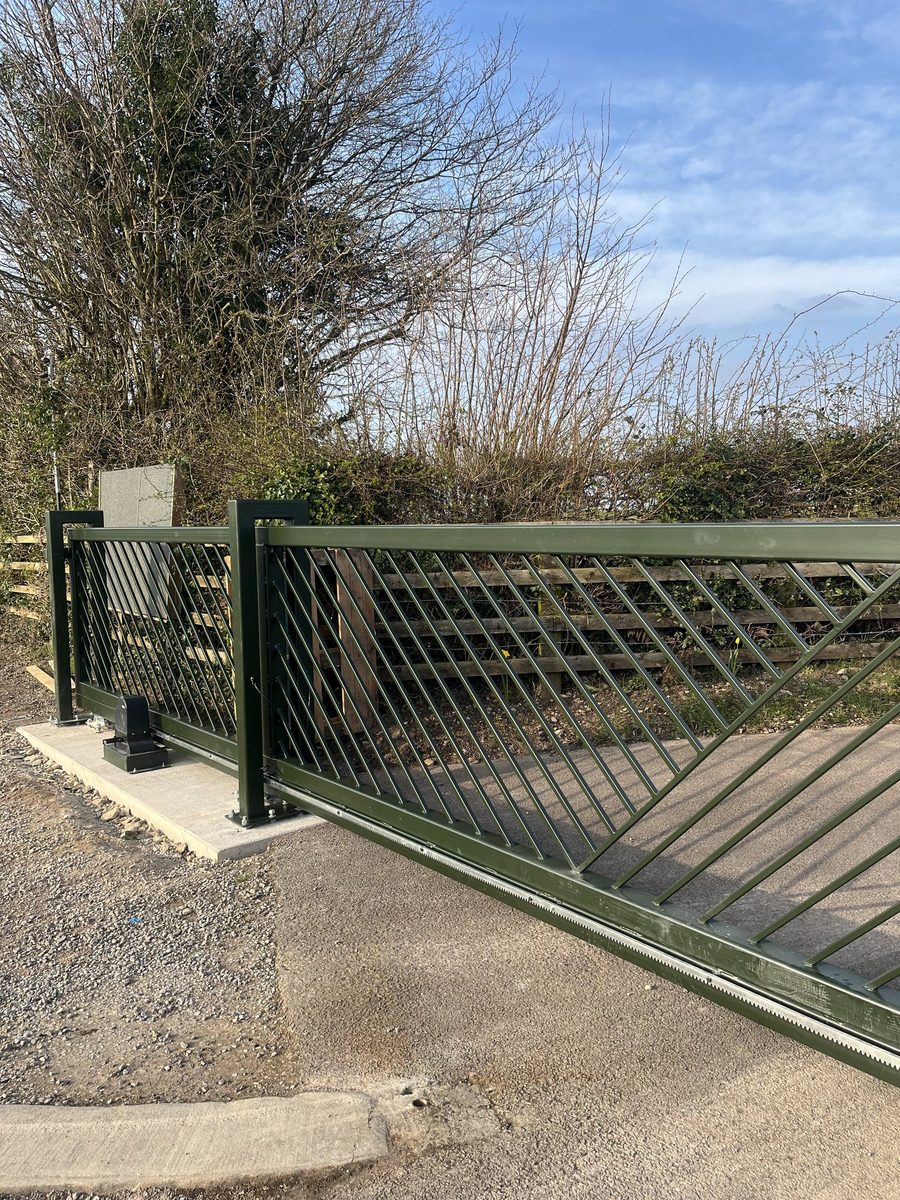

ANPR cantilever gate, 3D layout of the gate and siteANPR cantilever gate, 3D detail of the posts and drive unitANPR cantilever gate, concrete pad drawingANPR cantilever gate, general arrangement drawingFinished ANPR cantilever gate installed at the site entranceANPR cantilever gate post and drive unitANPR cantilever gate, full lengthANPR cantilever gate seen from the access roadANPR cantilever gate leaf and track
Drawings are shown at reduced detail to protect client information.
