ARCHITECTURAL METALWORK

Brass Doors

Bespoke brass framed glass doors for a high-end home, finished to a high architectural metalwork standard.

I surveyed the openings, designed the frames and glazing details in 3D, produced the workshop drawings and supported manufacture and installation.

Brass doors, manufacturing drawing with sections
Brass doors, manufacturing drawing with sections

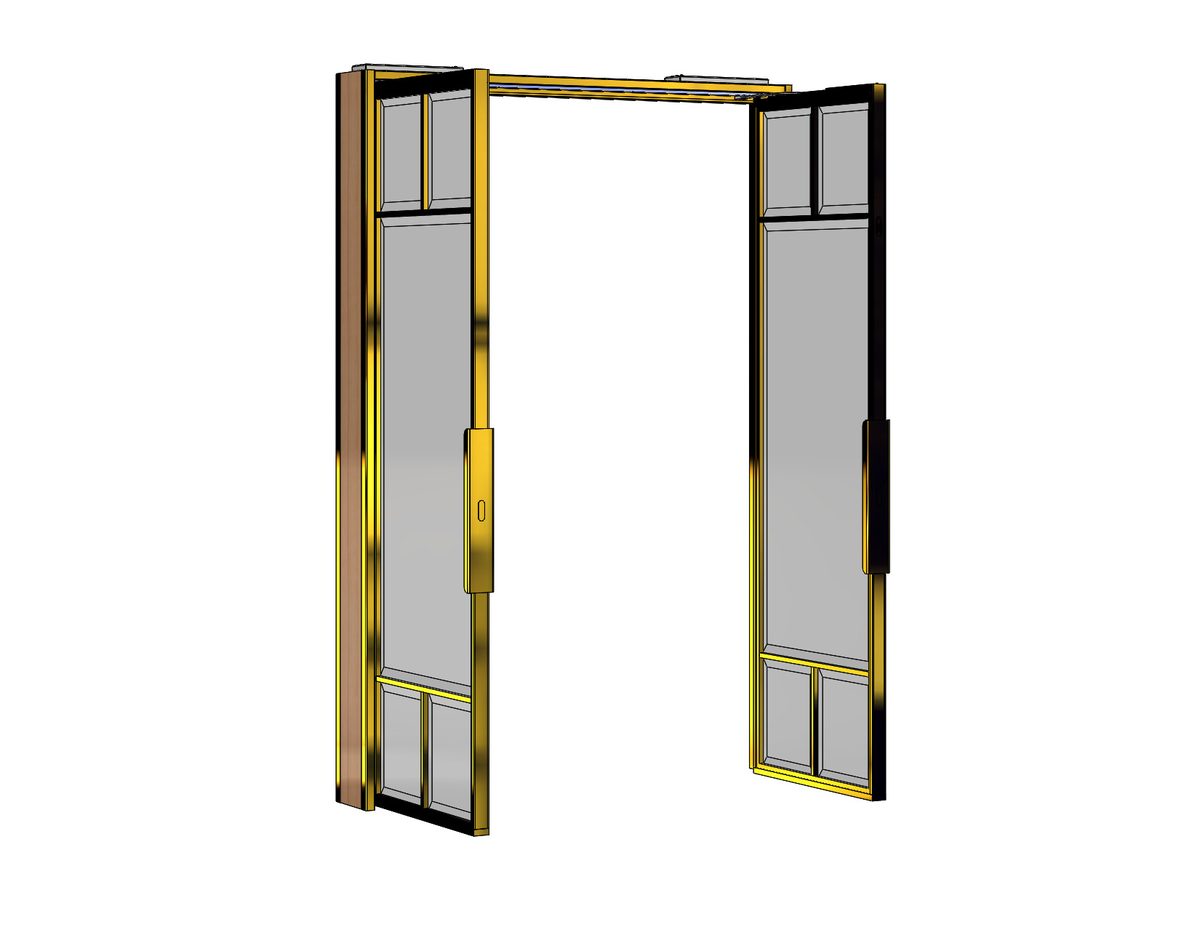

Brass door pair, 3D CAD model
Brass door pair, 3D CAD model

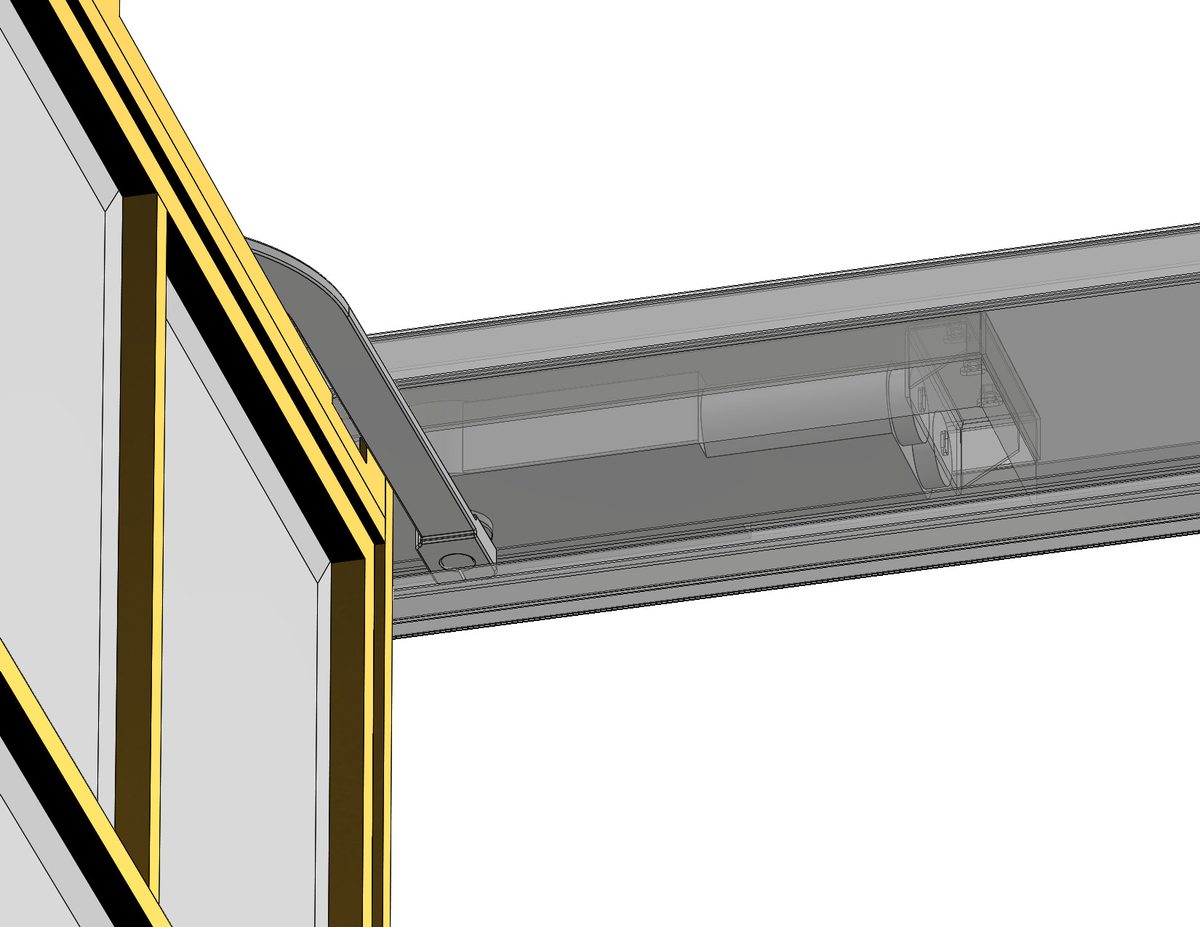

Brass door frame detail, 3D CAD model
Brass door frame detail, 3D CAD model

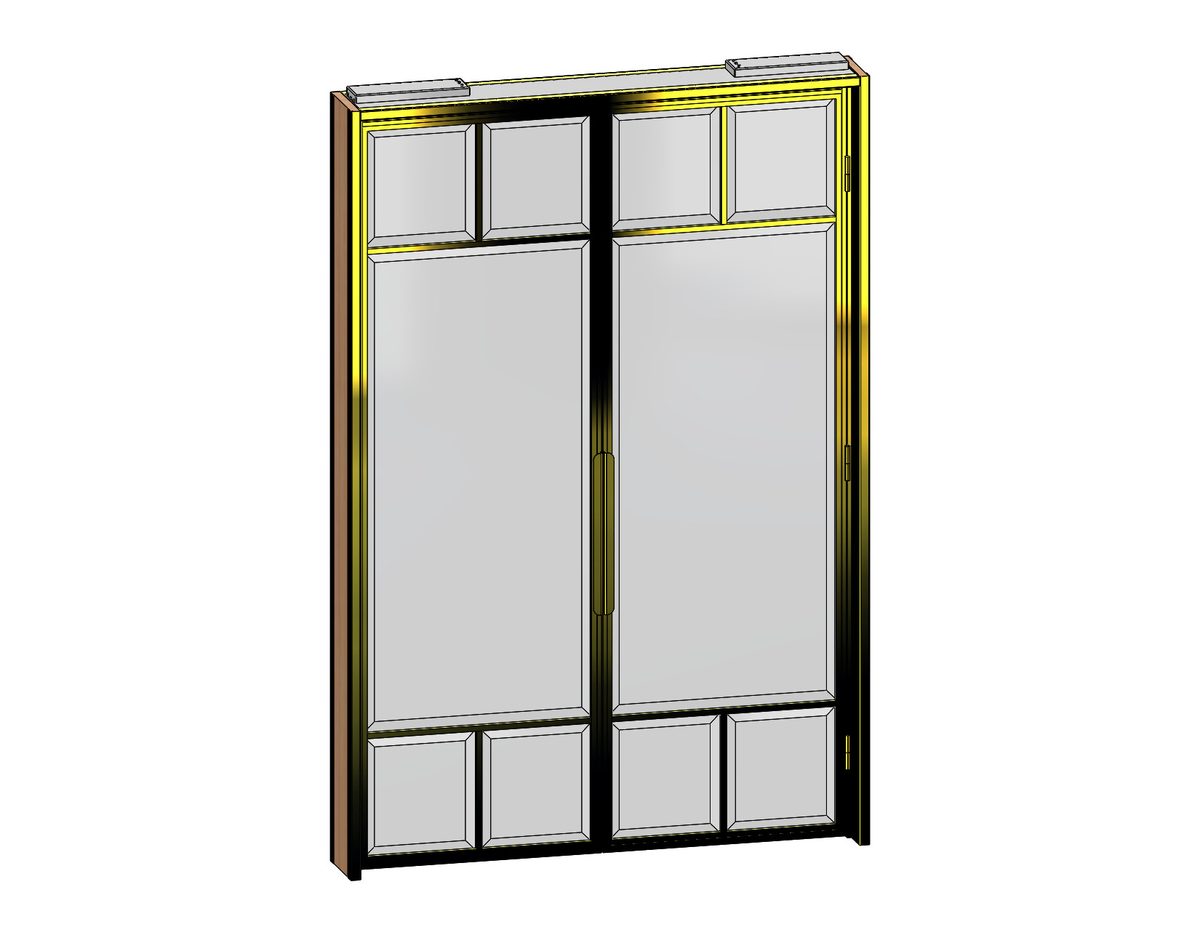

Brass doors closed, 3D CAD model
Brass doors closed, 3D CAD model

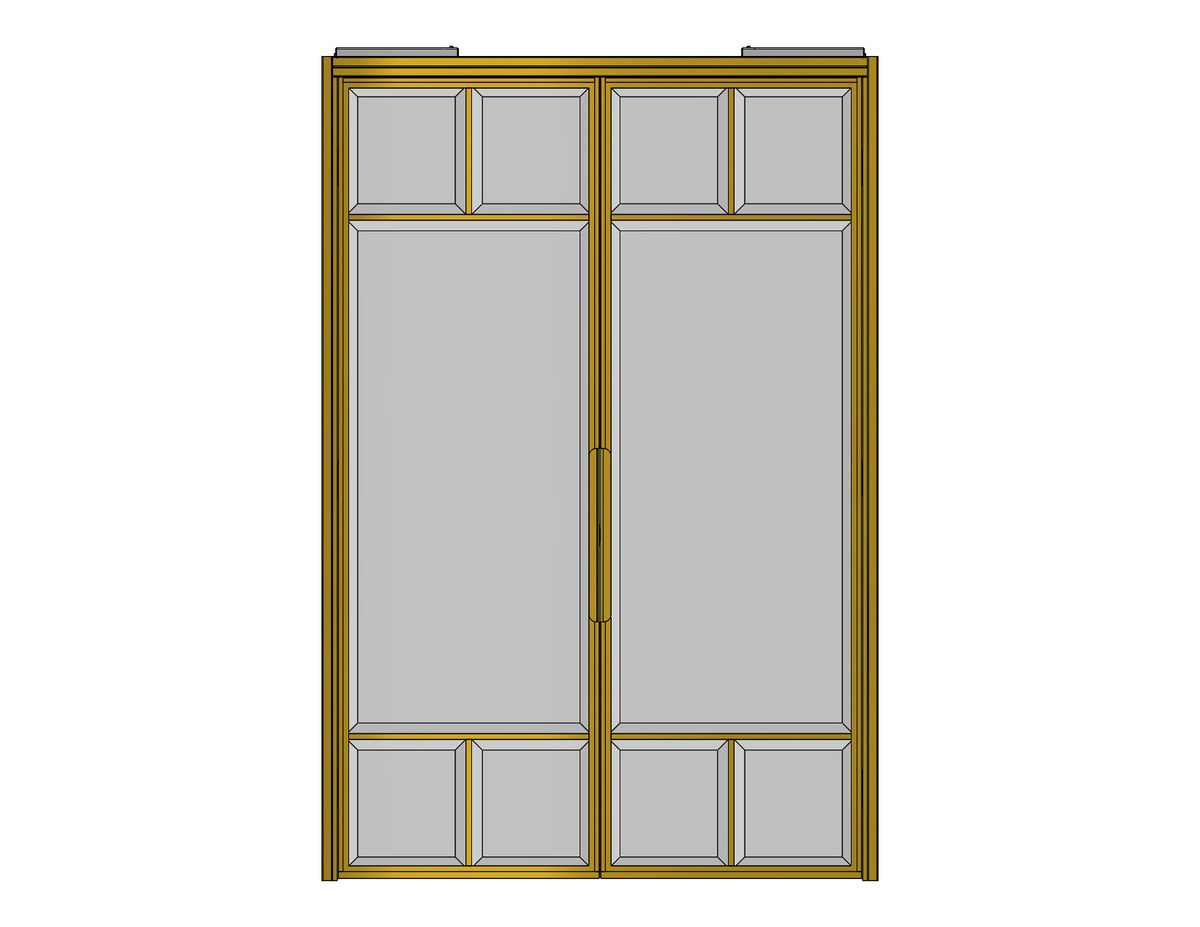

Brass doors front elevation, 3D CAD model
Brass doors front elevation, 3D CAD model

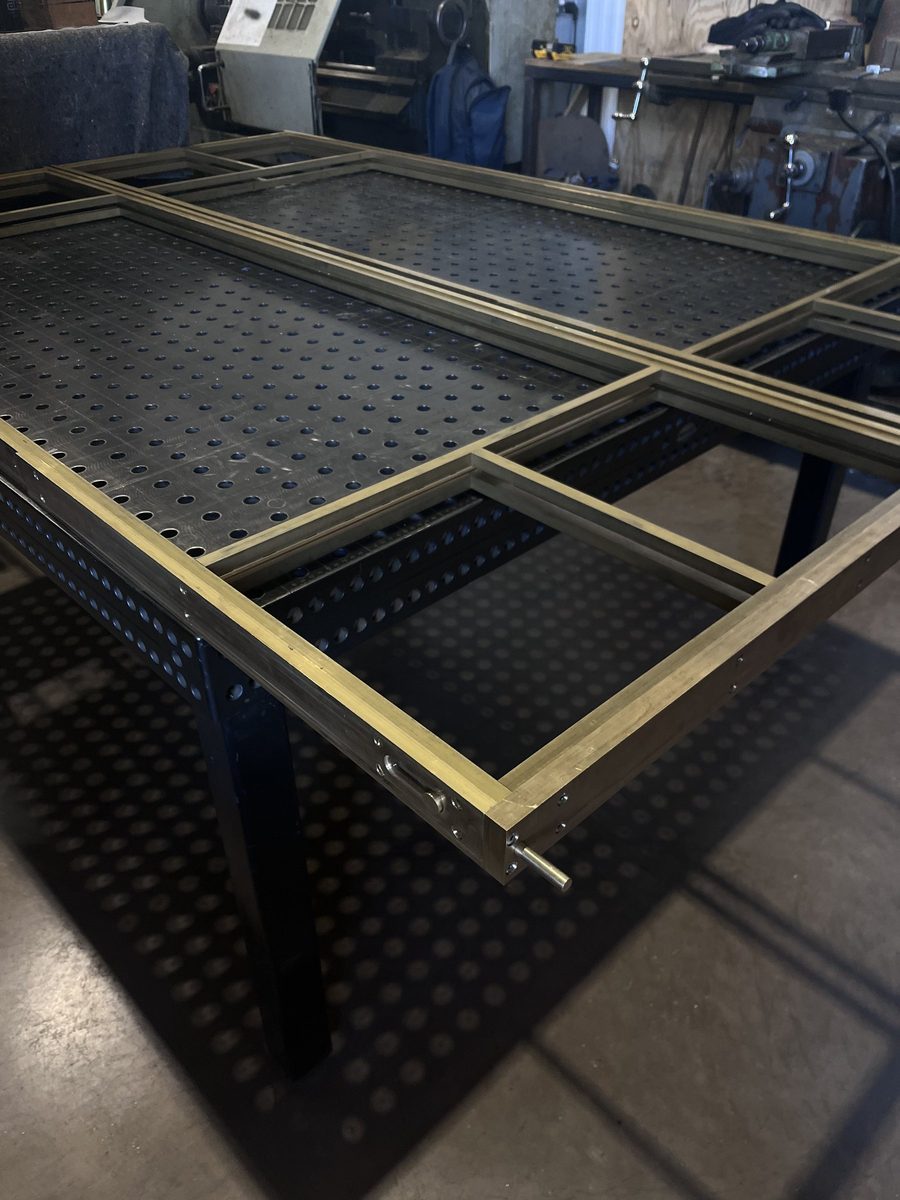

Brass door frame on the workshop table
Brass door frame on the workshop table

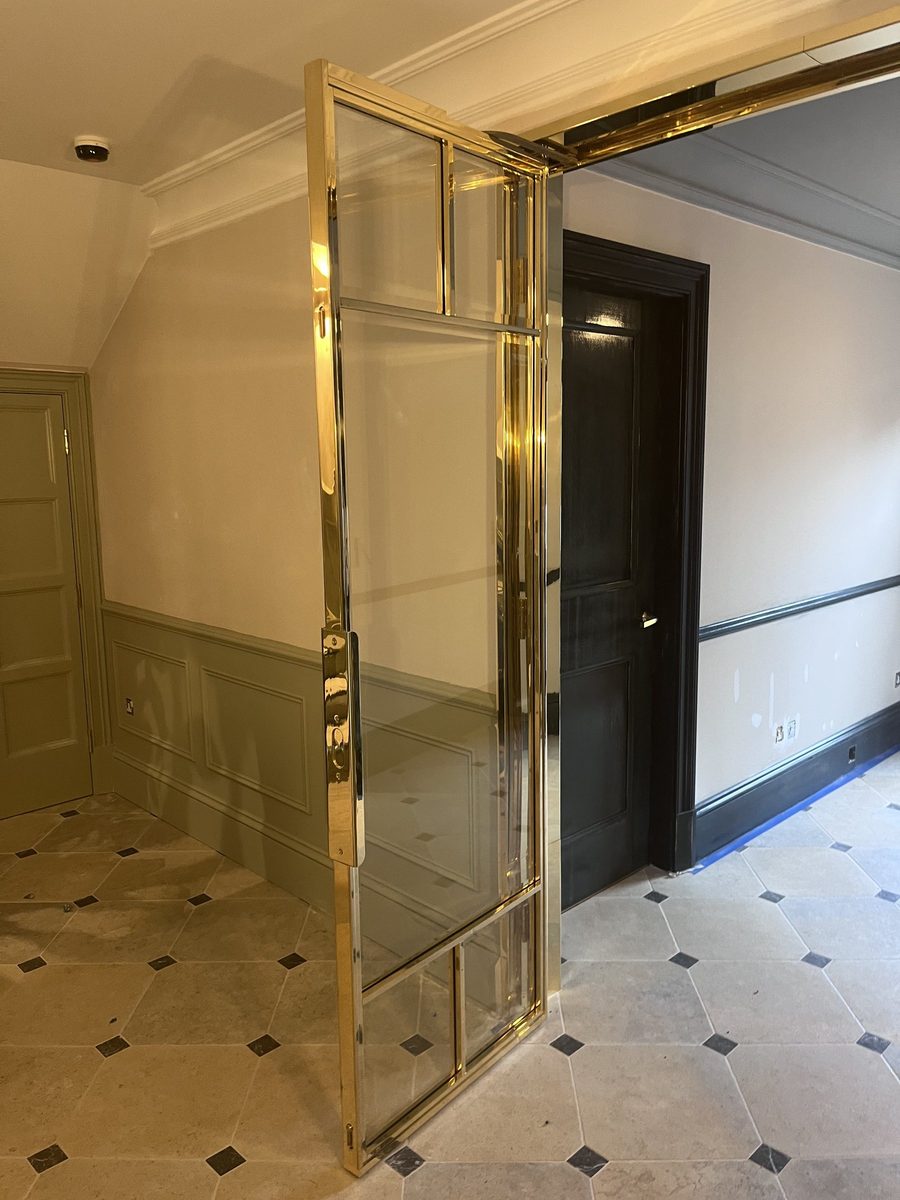

Finished brass door installed
Finished brass door installed

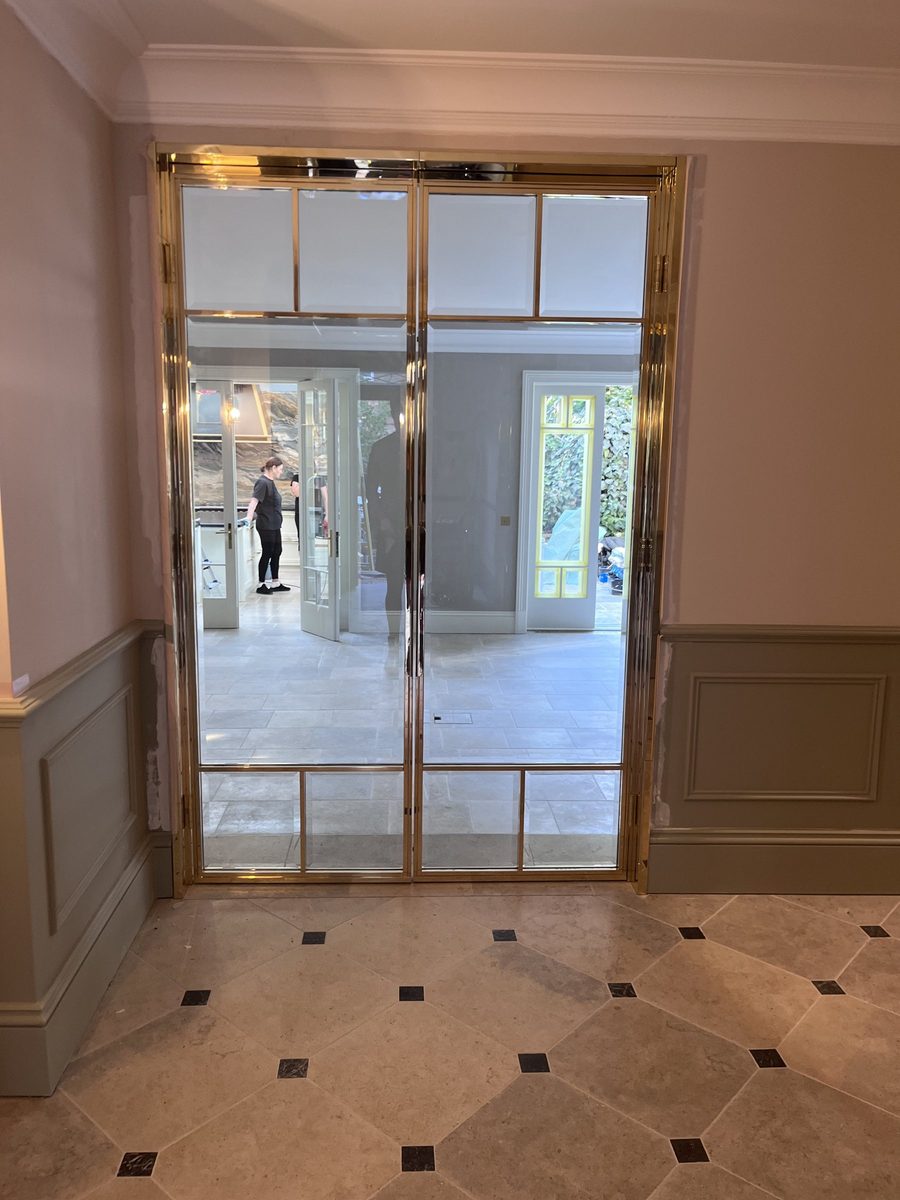

Finished brass doors in the hallway
Finished brass doors in the hallway

Drawings are shown at reduced detail to protect client information.
