ARCHITECTURAL METALWORK

Steel Fireplace

A fireplace surround in blackened steel, with hidden access panels so the gas shut-off valves can be reached without spoiling the look.

Designed in 3D around the opening and the services, with drawings for manufacture and installation.

Fireplace, manufacturing drawing with sections and details
Fireplace, manufacturing drawing with sections and details

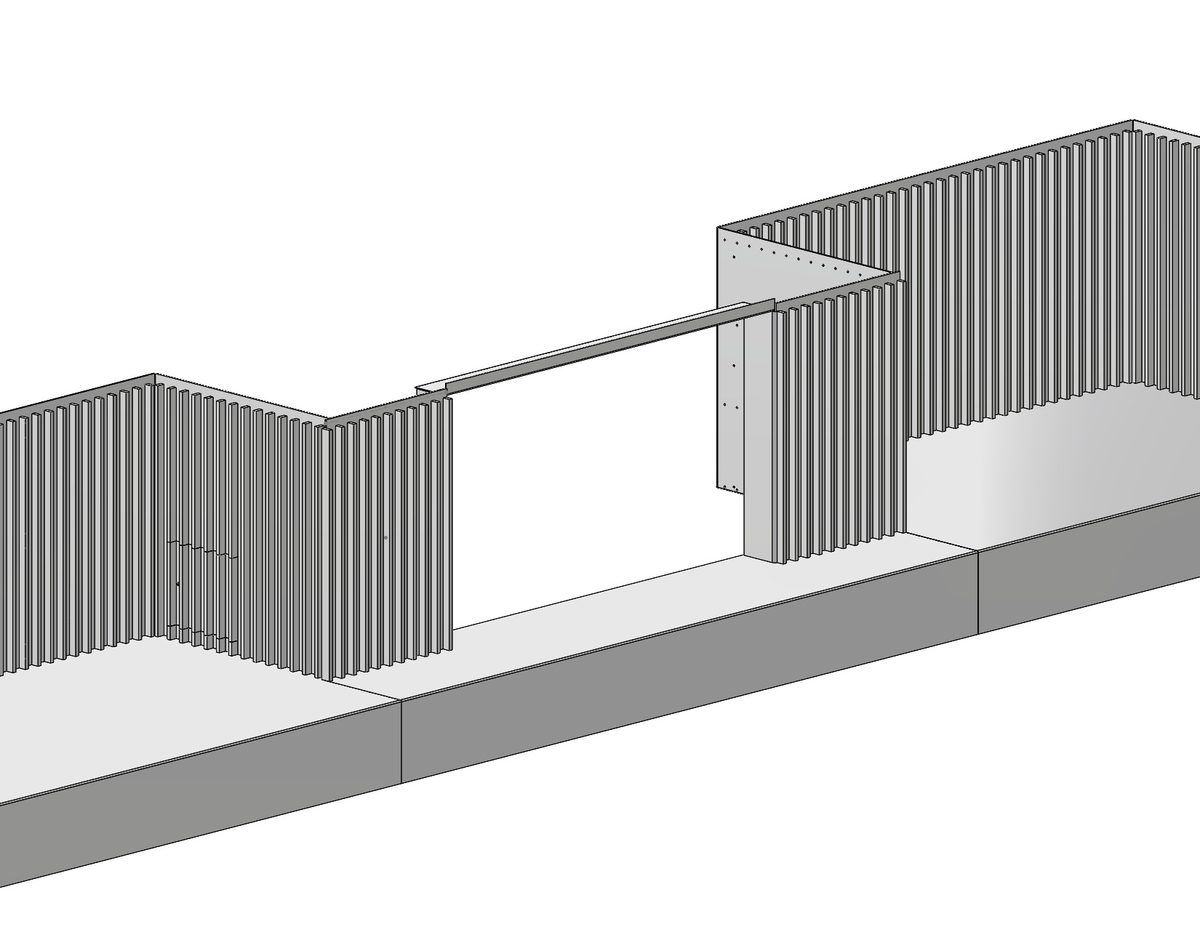

Fireplace surround, 3D CAD model
Fireplace surround, 3D CAD model

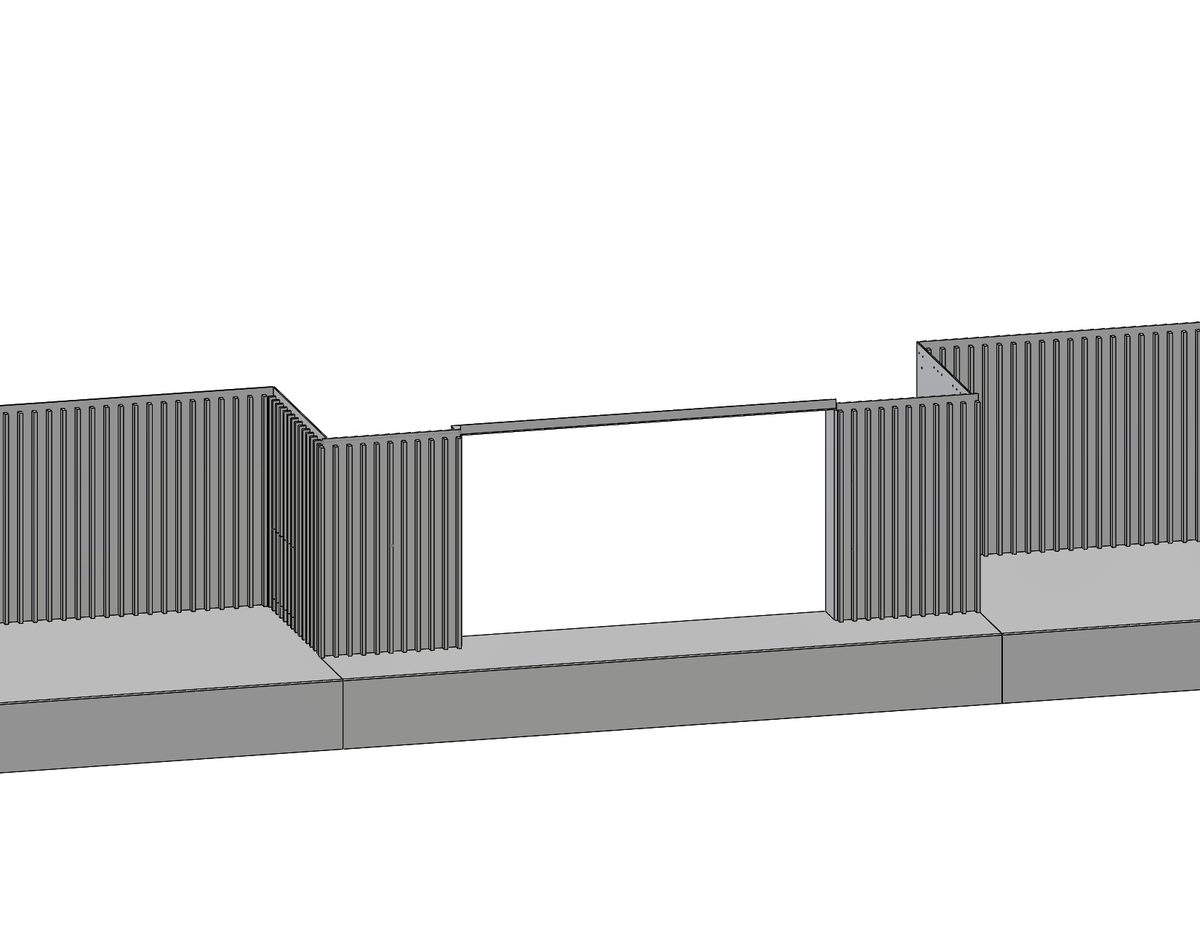

Fireplace surround close up, 3D CAD model
Fireplace surround close up, 3D CAD model

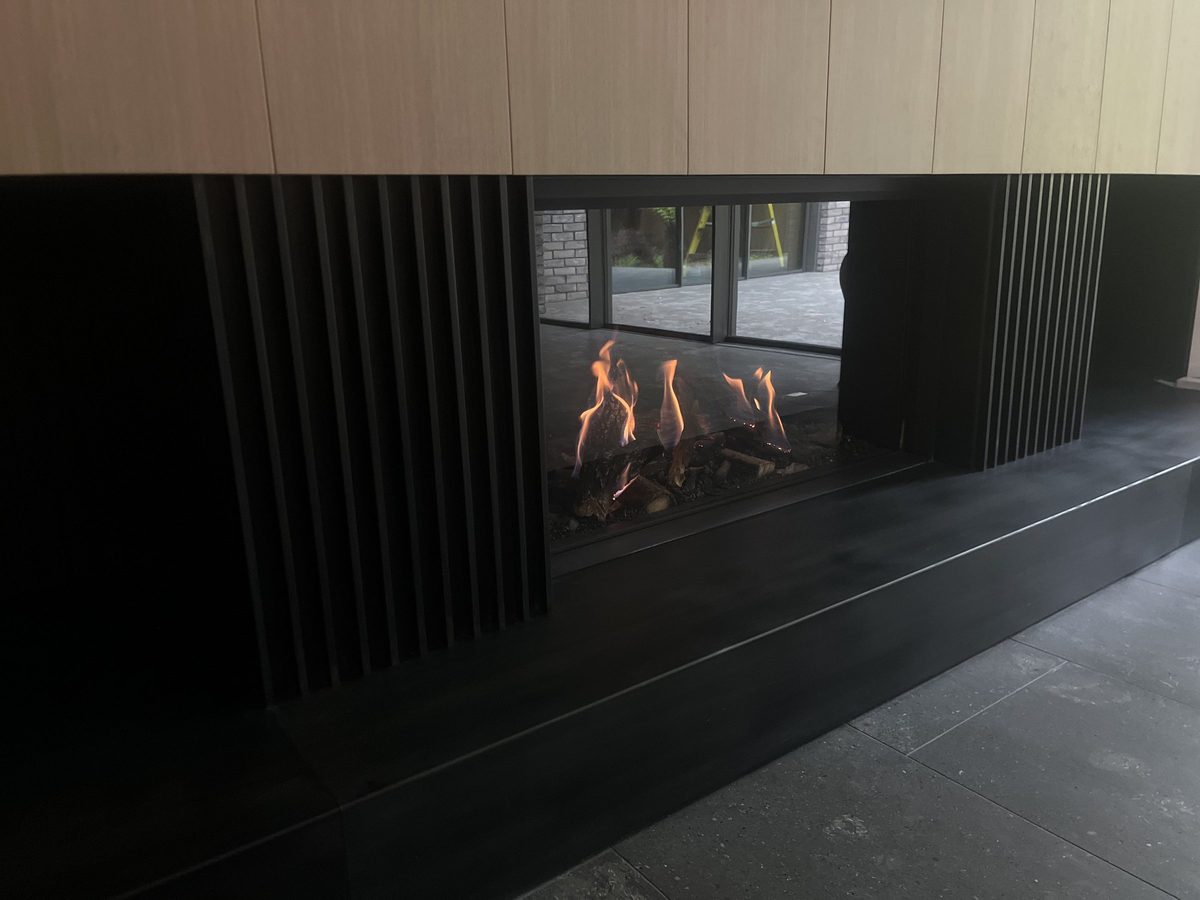

Finished blackened steel fireplace
Finished blackened steel fireplace

Drawings are shown at reduced detail to protect client information.
