Purpose-built stillages, racks and trolleys for moving and storing parts safely around a workshop and out to site: a batch of 50 stacking stillages for manufactured parts, a wheeled stillage that carries a finished staircase, and a mobile battery storage trolley.

Each one is designed around the parts it carries and how it will be handled, so loads are supported properly and the frames are quick to fabricate.

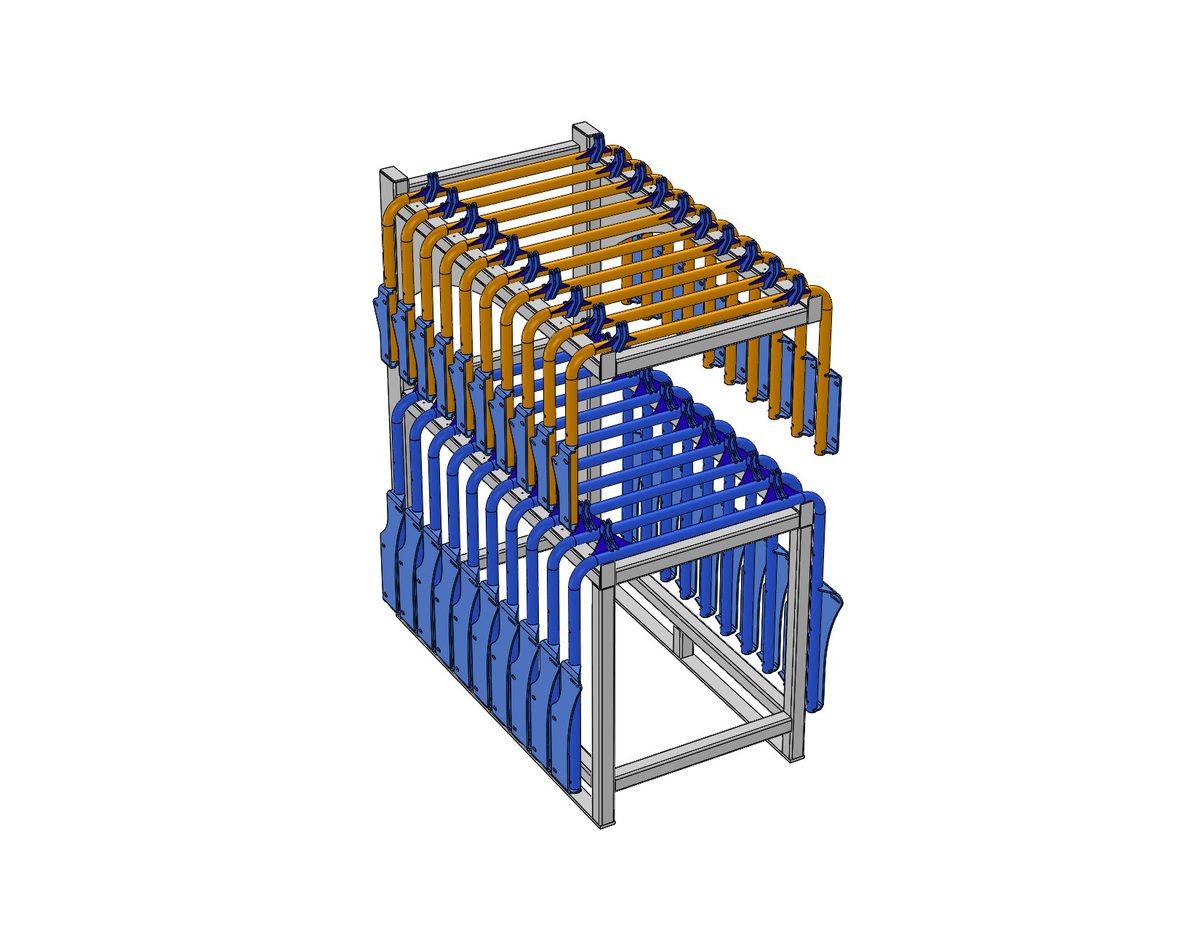

Manufacturing stillage loaded with parts, 3D CAD model
Manufacturing stillage loaded with parts, 3D CAD model

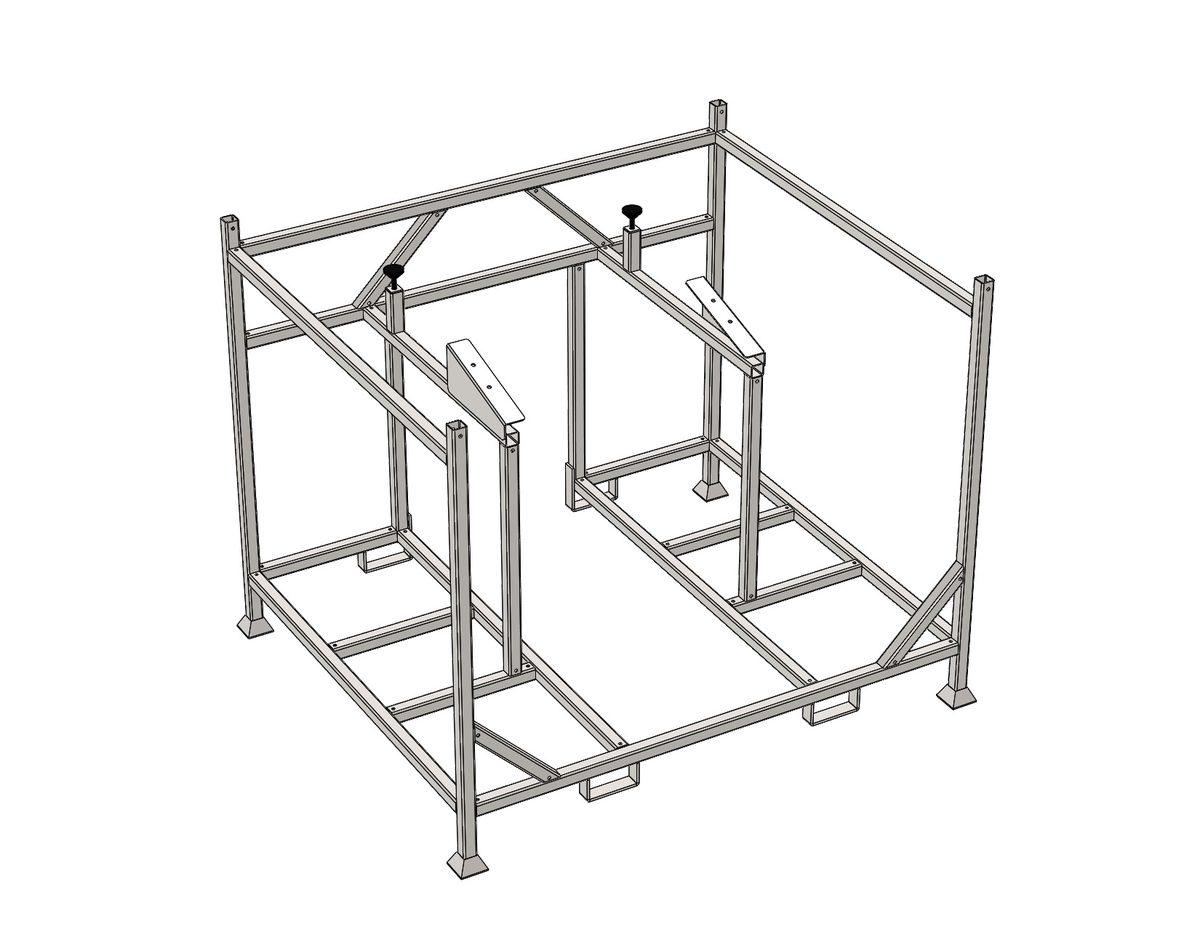

Manufacturing stillage frame, 3D CAD model
Manufacturing stillage frame, 3D CAD model

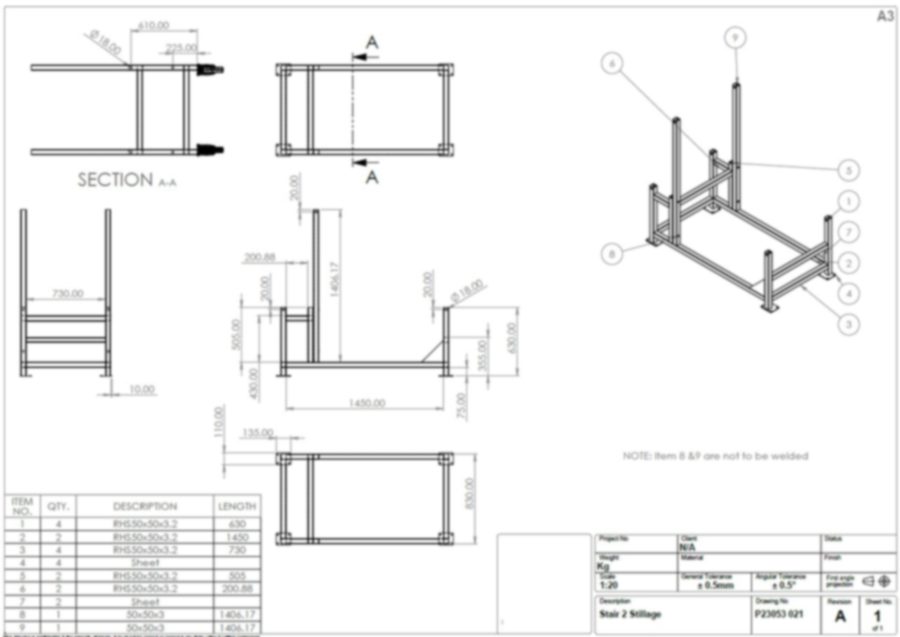

Staircase stillage, fabrication drawing
Staircase stillage, fabrication drawing

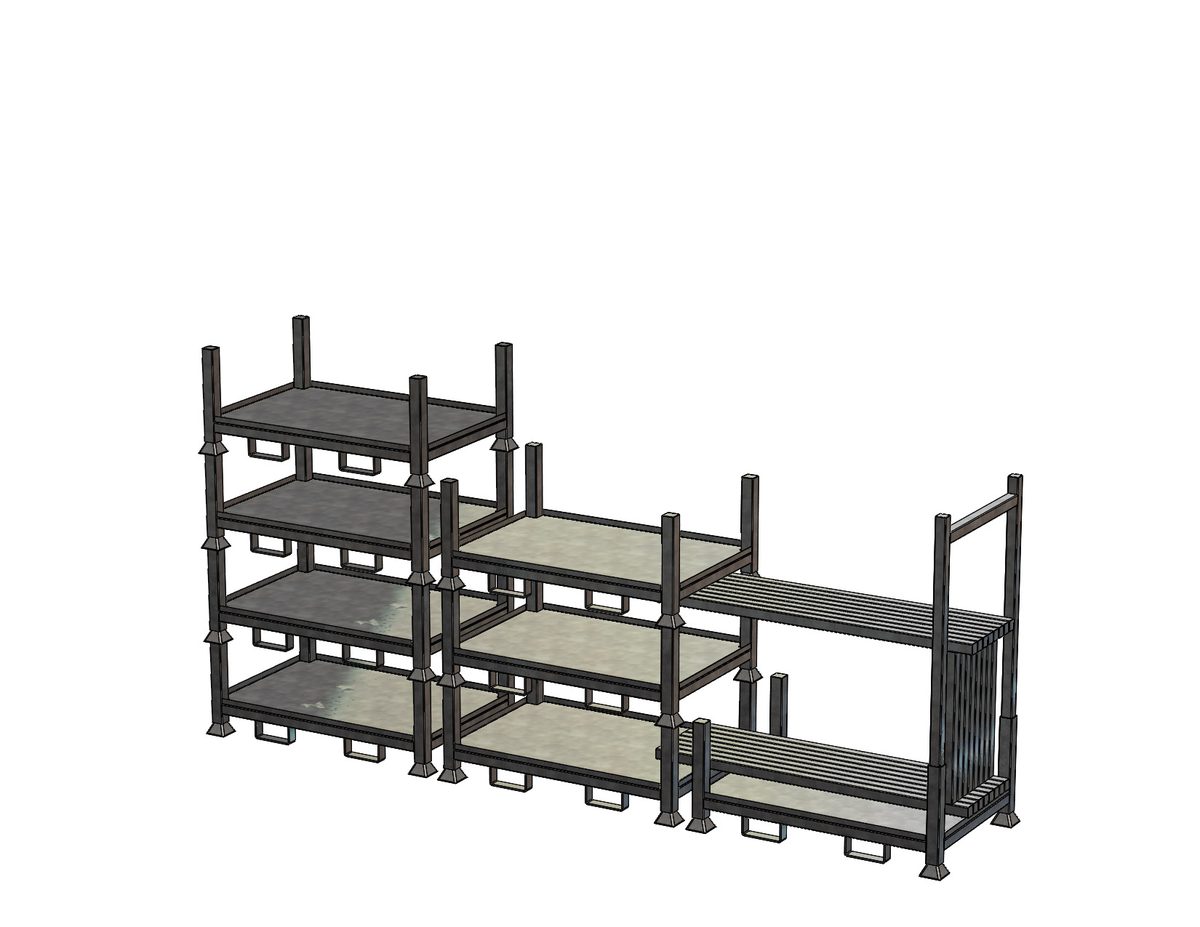

Stacking stillages, 3D CAD model
Stacking stillages, 3D CAD model

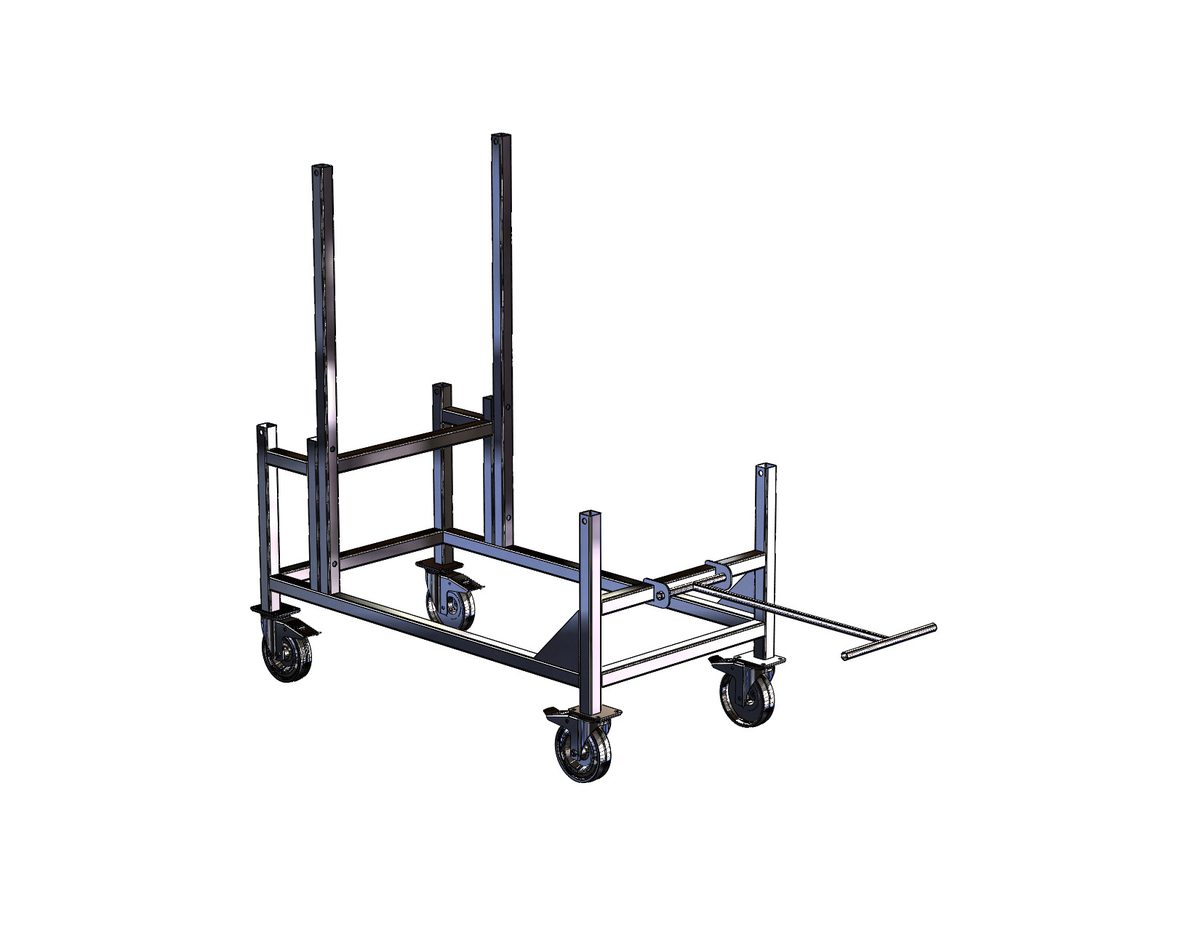

Wheeled staircase stillage, 3D CAD model
Wheeled staircase stillage, 3D CAD model

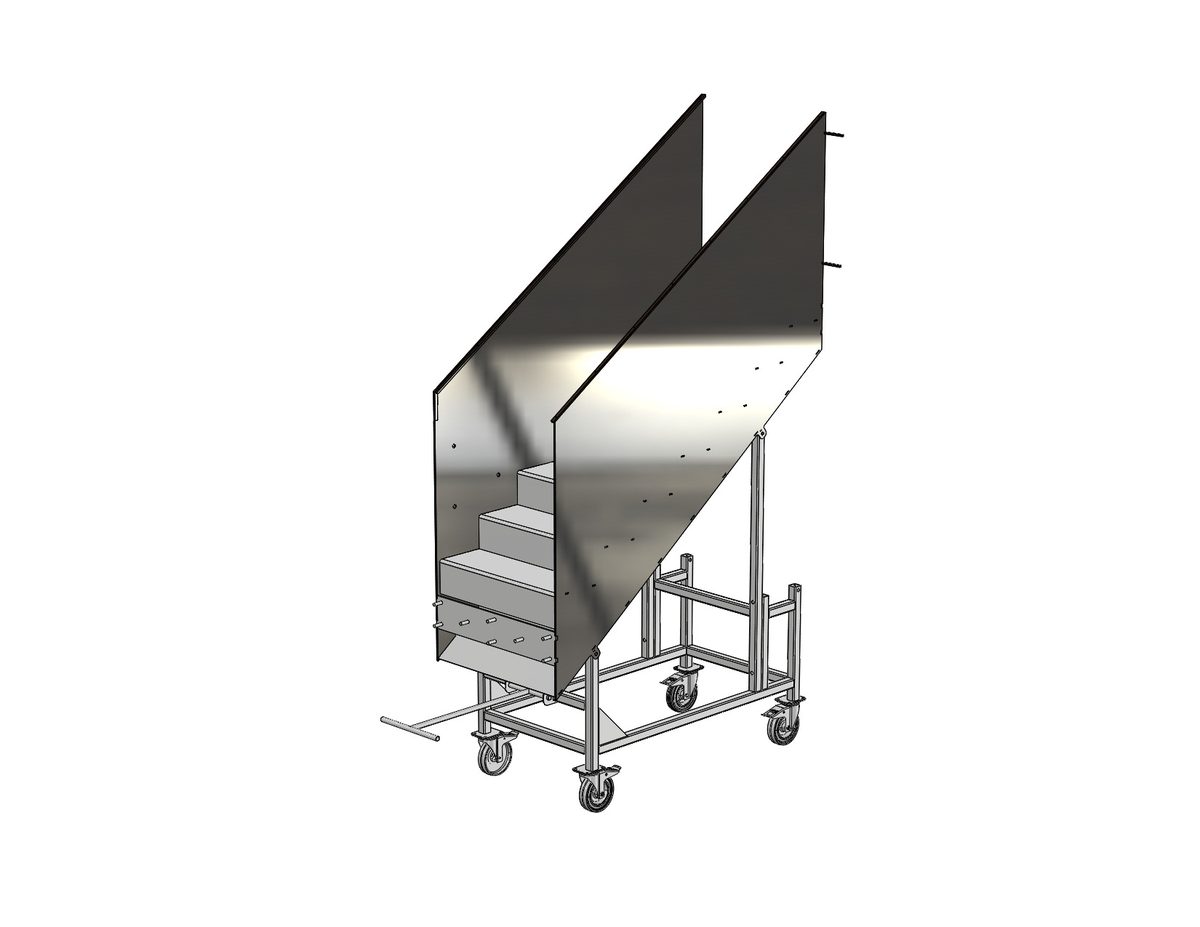

Wheeled stillage carrying a staircase, 3D CAD model
Wheeled stillage carrying a staircase, 3D CAD model

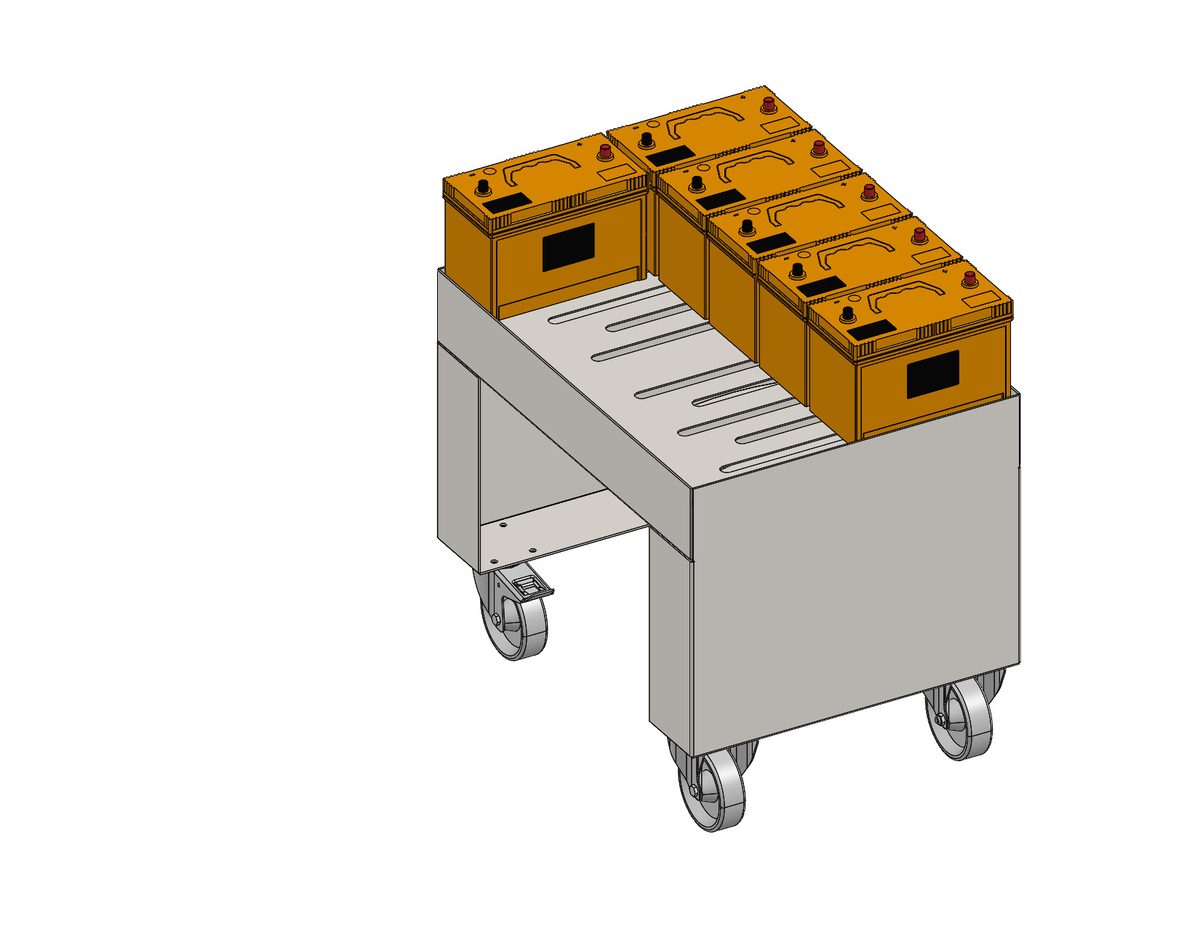

Mobile battery storage trolley, 3D CAD model
Mobile battery storage trolley, 3D CAD model

Drawings are shown at reduced detail to protect client information.
