Vanity Unit

A bespoke vanity unit with a marble top on a brass frame and legs.

As well as the unit itself, I designed the welding jig used to build the frame, so each part came out accurate and repeatable.

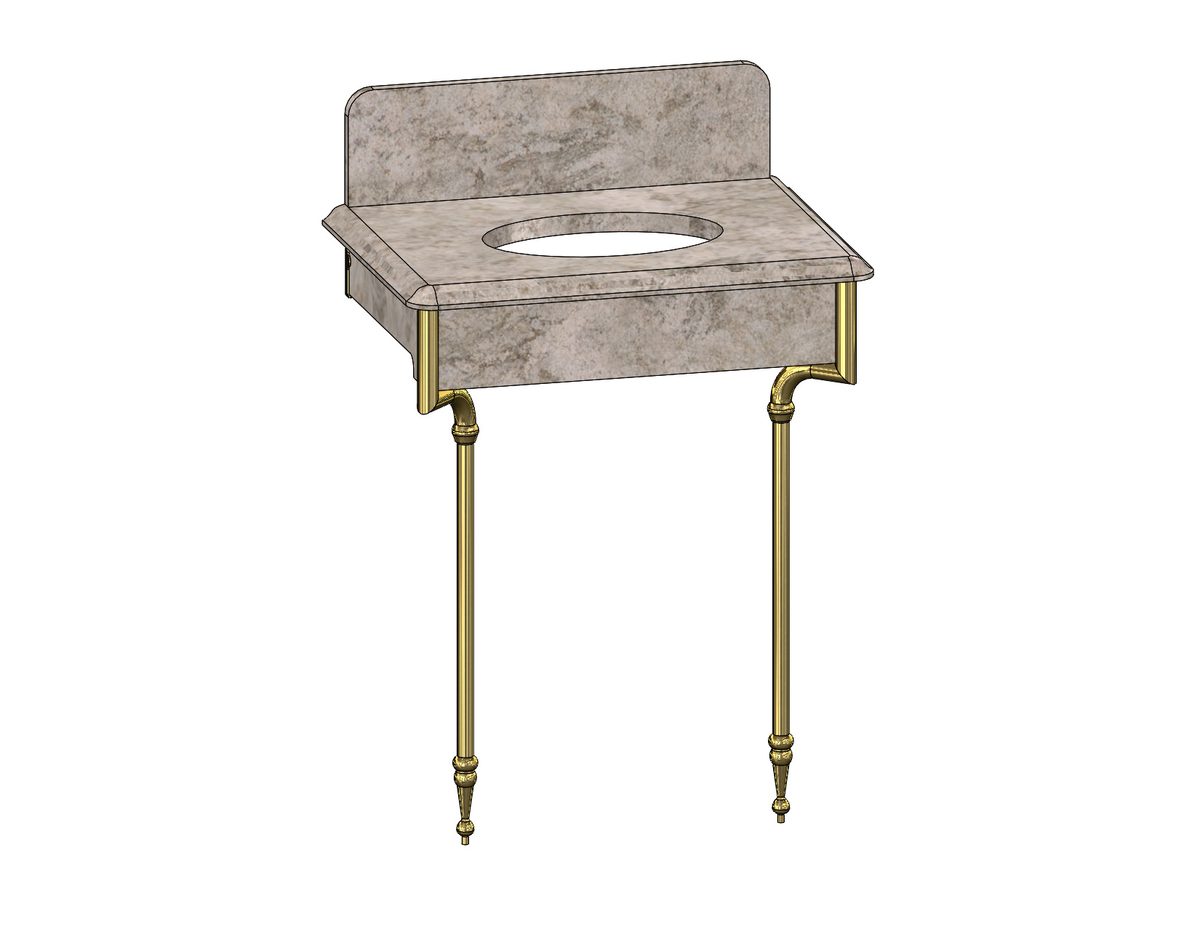

Marble and brass vanity unit, 3D CAD model
Marble and brass vanity unit, 3D CAD model

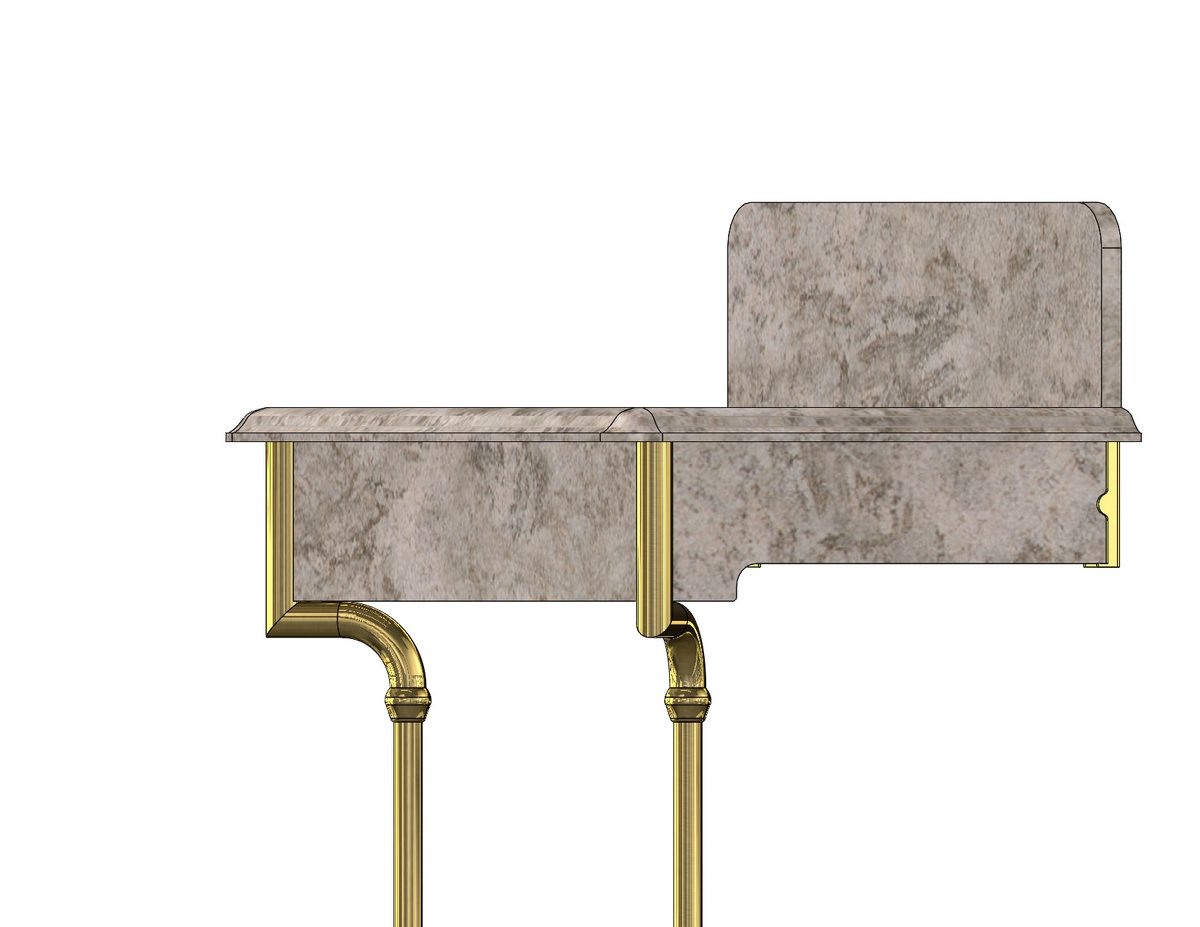

Vanity unit from the front, 3D CAD model
Vanity unit from the front, 3D CAD model

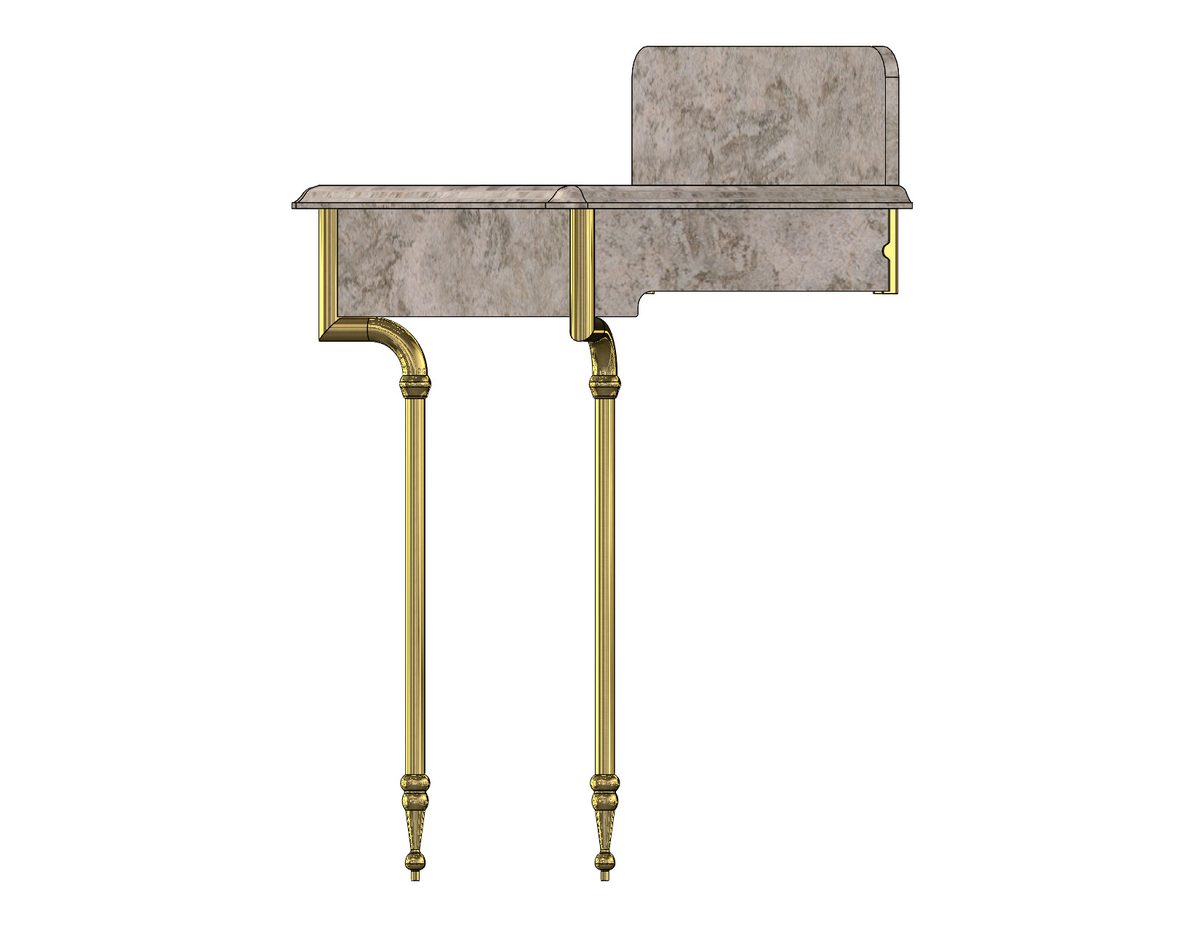

Vanity unit from the side, 3D CAD model
Vanity unit from the side, 3D CAD model

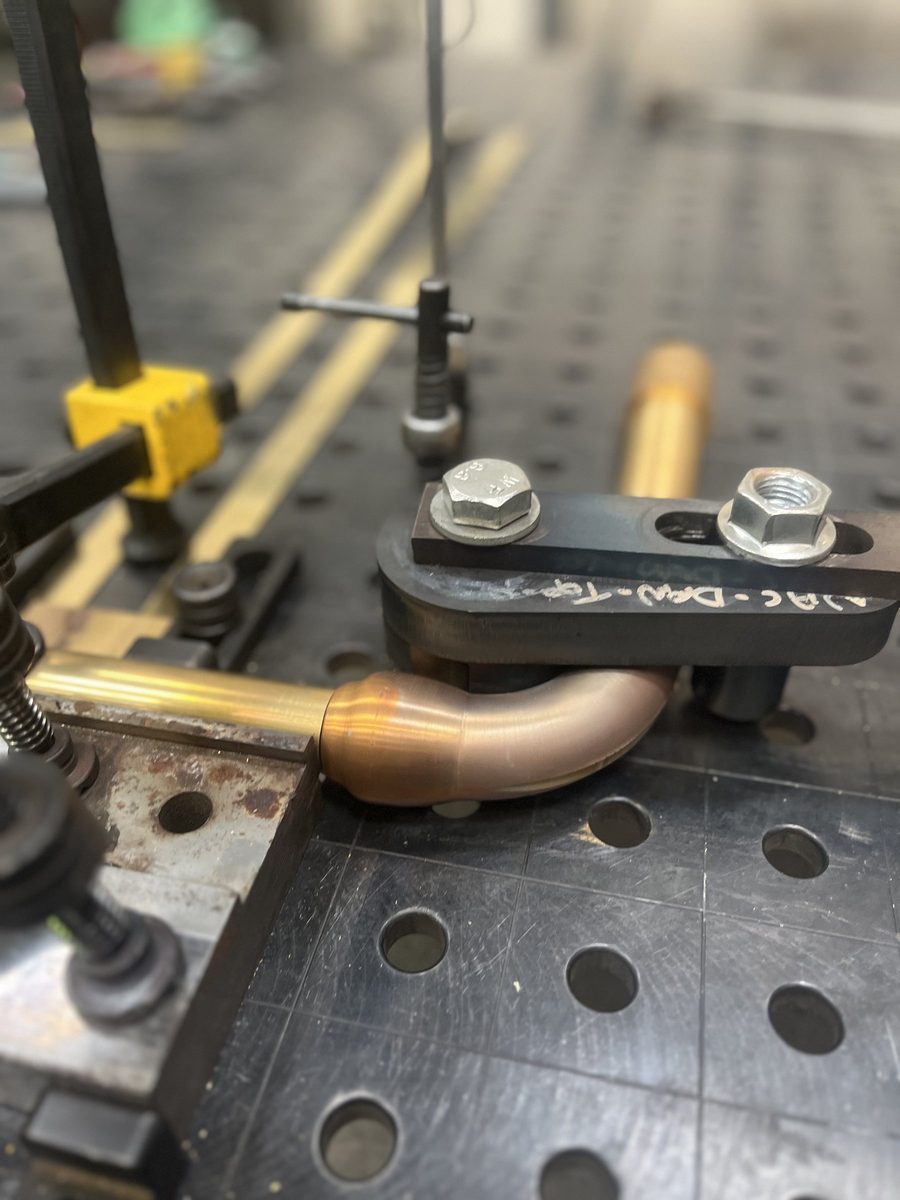

Welding jig holding a brass leg during fabrication
Welding jig holding a brass leg during fabrication

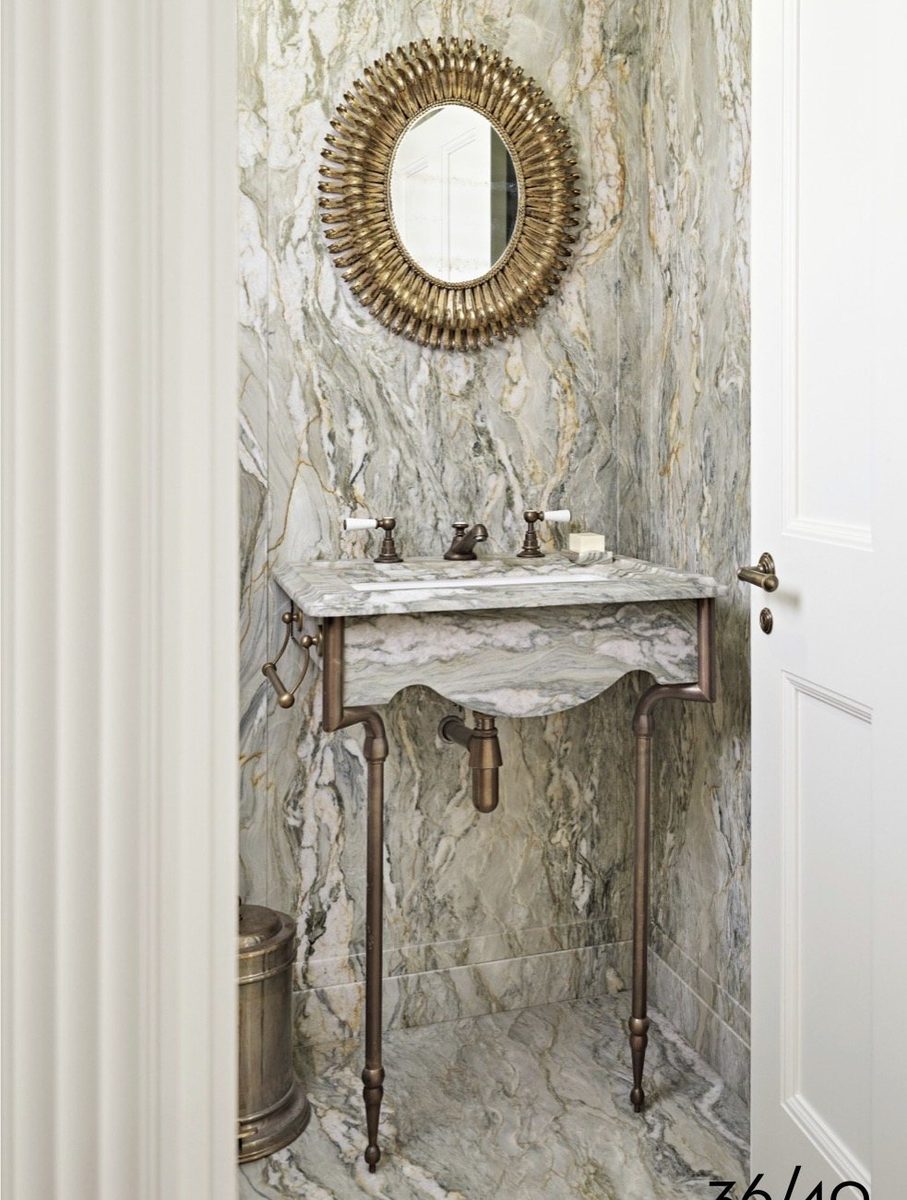

Finished vanity unit installed
Finished vanity unit installed
